BATTERY
CABLE
Application
These wires used low voltage circuit in automobiles such a Vehicles and Motor cycles. Where high flexibility is required.
Cable Standard
SAE J1127 VDE 0295, IEC 60228, IS 2465, BS 6862
Salient Features
- Excellent flexibility
- The NESKEB Auto cables is impervious
to water, petrol, diesel, acids, engine and lubricating oils and grease resistant - High mechanical strength
- Excellent flame retardant properties
- Excellent mechanical & electrical properties
- Special heat resistant insulation
- Minimum bendin
Standard Packing
Coils 25, 50, 100, 200 And 500m.

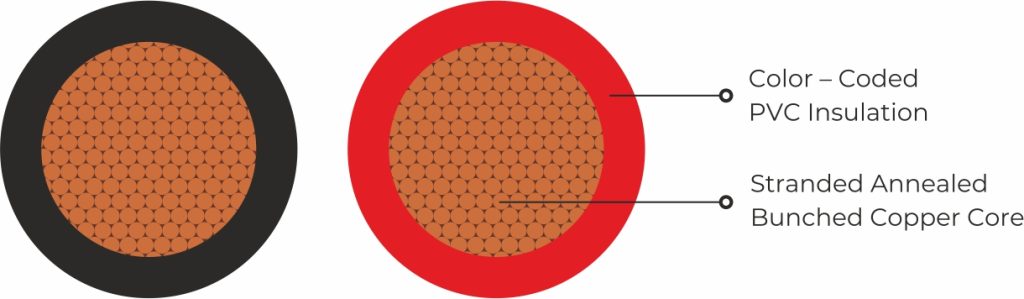

- Conductor : Flexible Battery Cables: Flexible bare copper class 5
conductors to IEC 60228
Extra Flexible Battery Cables: Flexible bare copper class 6
conductors to IEC 60228 - Insulation : Flexible Battery Cables: HR PVC Extra Flexible Battery Cables: HOFR(TPR Rubber)
- Separator: Polyester tape over conductor for HOFR insulated extra flexible battery cables
- Colour : Red, Black
