BMS CABLE SHIELDED 300V
Building management system cables also known as BMS cables, or intelligent building cables, are used to automate building utility
systems like air conditioning, ventilation, lighting, hydraulics, etc. These cables power individual equipments as well as the interconnection between various equipments; thus creating an integrated system. EMI suppression filters are attached to the cables to provide noise-free
signal in BMS systems.
Neskeb BMS cables are the industry’s preferred choice for building management systems. Developed as per international standards and
manufactured for a wide range of applications, Neskeb BMS cables easily meet the industry’s demanding requirements
Application
Neskeb Shielded cables generally conforming to EN 50288-7, are designed for transmission of analogue and digital signals in the building
management system. The cables are useful for controlling & monitoring of diverse applications inside the building.
Voltage Rating
300 V
Standard And References
EN 50288-7 | EN 50288-1 | EN 60228 | EN 60332-1-2
Operation Temperature
Max.: PVC 70°C
Compliance
| Conductor Resistance | – EN 60228 |
| Insulation Resistance | – EN 50288-7 |
| L/R Ratio | – EN 50288-7 |
| Mutual Capacitance | – EN 50288-7 |
Core Identification
2 Core-Red & Black
3 Core-Red, Black & Yellow-green
4 Core-Red, Yellow, Blue & Yellow-green
5 Core & above -White/Grey core with number printing
Bending Radius
12 x Overall diameter

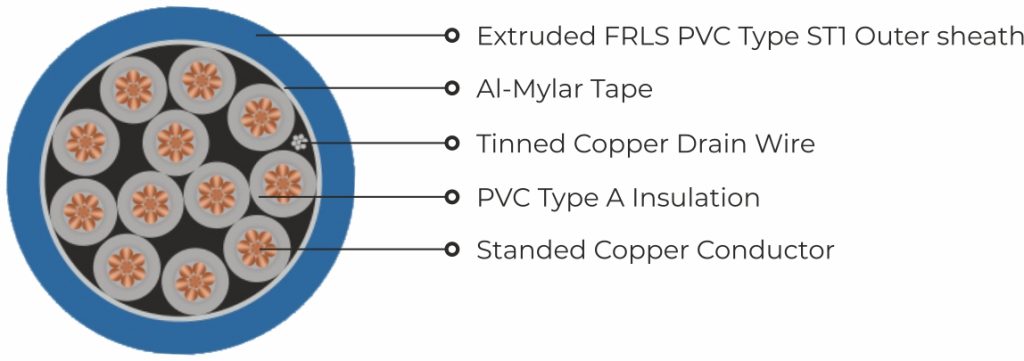

Construction
- Flexible (Class 5) Copper conductor as per EN 60228
- Insulated with PVC Type A
- Collective screen Al/PET (Aluminium Polyester tape) with drain wire of tinned Cu
- Sheathed with Extruded PVC FRLS
