BUILDING WIRE
FR/FRLS/HRFR/ZHFR
Application
Fixed installation in conduits and under plaster, for appliance wiring &
distribution stations.
Fixed Wiring in Conduits & Building wire Application.
Cable Standard
Generally conforms to IS 694:2010, BS6004
Salient Features (FR and FRLS)
- Good Flame Retardant Properties
- Excellent resistant to moisture, abrasion, grace, oil
- Long Life
- Excellent mechanical & electrical properties
- Steam and boiling water resista
Salient Features (ZHFR)
- Zero Halogen acid gas Evolution
- Non corrosive and non toxic insulation
- High temperature resistant insulation
- Better Flame retardant property
- Excellent resistant to moisture, abrasion, grace, oil
- Long Life
Standard Packing
Coils 90m, 180m and 360m

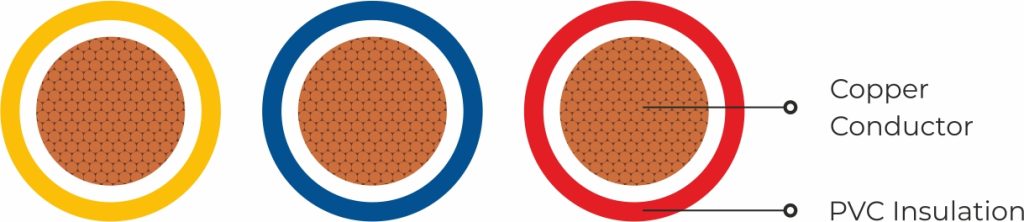

- Conductor : Annealed flexible bare Copper class-2
and class-5 Conductor
as per IS:8130-1984 - Insulation : PVC FR, FRLS,HRFR,ZHFR
as per IS:5831-1984
Technical Data
| Operating Temp | – 10°Cto max.+90°C |
| Nominal Voltage | – 1.1 KV |
| Test Voltage | – 3.0 KV |
| Flame propagation | – Flame retardant test as per IS 10810-58,64, IEC 60332-1 |
Core Colour
Red, yellow, Blue, Black, Brown, Grey, Orange, White, Green, Yellow/green or as per customer requirement
