CAT7 CABLE
Applications
CAT7 cable is intended to support much higher frequencies of
signals than the CAT5e and CAT6 cables.
CAT7 Ethernet cables (LAN cables) are used to connect
modems, hubs, and individual computers on networks of all
shapes and sizes.
Commercial and Industrial Applications: CAT7 cables can withstand various hazards, including temperature extremes, UV/moisture exposure, and direct contact with different chemicals and oils.
Domestic Applications: Cat7 cables have become increasingly popular with home users across a wide range of domestic CAT7 LAN cable networks and connectivity setups, in addition to enthusiast gaming setups.

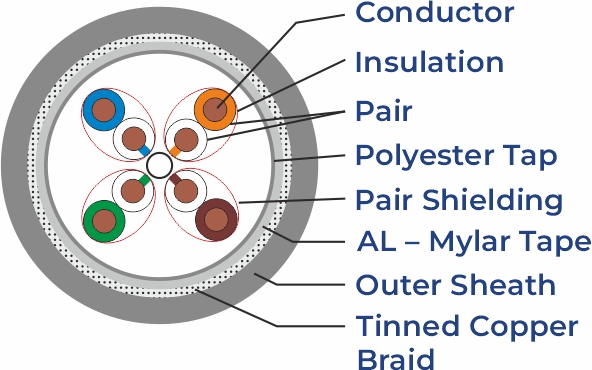

Construction
| Conductor: | Annealed Bare Solid Copper Conductor 23 AWG & 24 AWG |
| Insulation: | HDPE |
| Separator: | LDPE |
| Sheath: | PVC / HR-PVC / LSZH / FRLS |
| Type: | Shielded and Braided |
| Shield: | Aluminum Mylar (Foil) tape screen with tinned copper drain wire. Individual Shielding or Overall Shielding |
| Options: | Double Sheath for Outdoor / Wire Armoured / Aramid Yarn Strength / Water Blocking Tape |
| Note: | Customised Solutions available on request |
