EARTHING
CABLE
Application
Neskeb – Earth : Installation in surface mounted or embedded conduits, or similar closed systems
Cable Standard
Generally conforms to IS 694:2010, IEC60228, BS 6004
Salient Features
- Special heat resistant insulation
- Higher current carrying capacity
- Fine copper wires
- Highly thermal stable insulation
- High electrical conductivity
- Long Life
- Excellent mechanical & electrical properties
Standard Packing
Coils 100, 200, 500 and 1000m

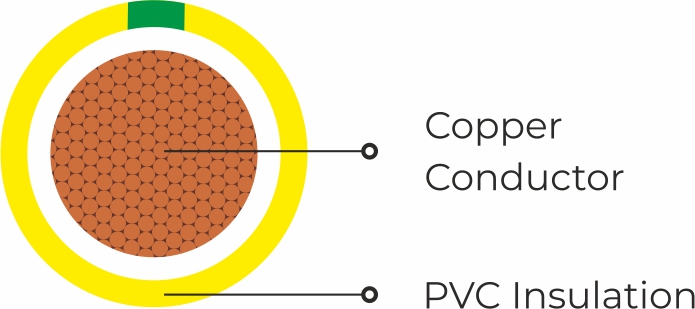

- Conductor : Bare Copper class1 or class-2 as per IS:8130, IEC 60228
- Insulation : PVC FR, FRLS,HRFR,ZHFR as per IS:5831-1984
Technical Data
| Operating Temp | : -10°C to max.+90°C |
| Nominal Voltage | : 1.1 KV |
| Test Voltage | : 3.0 KV |
Core Colour
Black, Green, Yellow/green or as per customer requirement
