FIRE SURVIVAL CABLE
600/1000 V AC
Application
Neskeb Multicore Armoured cable is suitable to use in various indoor & outdoor applications where continuity of power supply during the event of fire, is highly essential and corrosive gas evaluation could be a cause of hazard to the people or the precision instruments
in high rise building, schools, hospitals, hotels, Malls, Subways etc.
Voltage Rating
0.6/1KV
Test Voltage
3500V AC at (20±5)°C
Standard And References
EN 60228:2005 | BS 7846:2016
Operation Temperature
-40°C to +90°C
Short Circuit Temperature 250°C
Compliance
| Fire Resistant | BS 7846-F2 / BS 6387 CWZ / BS EN 50200 (PH 60) / BS 8434 / BS 8491 / EN 60331-3 |
| Flame Propagation | EN 60332-1-2 |
| Fire Retardant | EN 60332-3-24 (Cat.C) |
| Halogen Free Material | EN 60754-1 |
| Smoke Density | EN 61034-2 |
| Toxicity | NES 02-713 |
Core Identification
2 core: brown, blue; | 3 core: brown, black, grey;
4 core: blue, brown, black, grey;
5 core: green-and-yellow, blue, brown, black, grey;
Above 5 core can be supplied with number printing
(All cores: optional number printing)
Bending Radius
Min. 12 x Overall Diameter

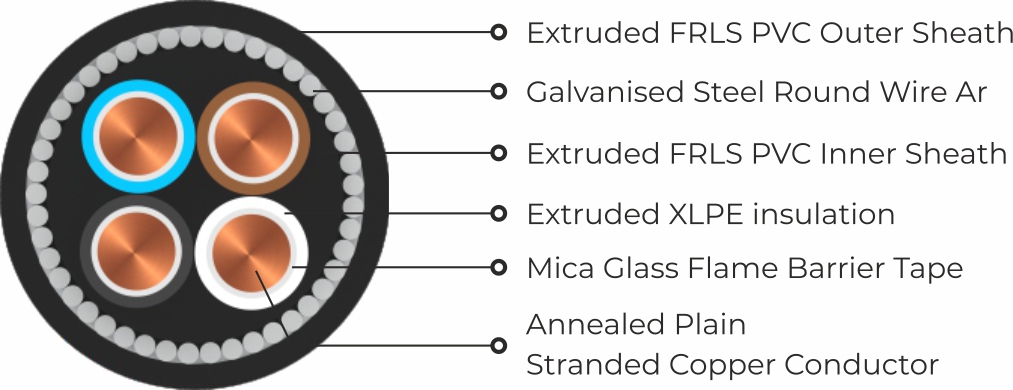

Construction
- Annealed plain stranded copper conductor as per IEC 60228, Class-2. | – Mica Glass flame barrier tape. | – Extruded XLPE insulation.
- Insulated Cores assembled together. | – Extruded FRLS PVC Inner Sheath. | – Galvanised Steel Round Wire Armoured.
(also available with Galvanised Steel Flat Strip Armour, dimensions and weights changes accordingly) - Extruded FRLS PVC Outer Sheath, Colour: Black. (other colour as per request).
