H05VV-F CABLE
Application
H05VV-F cordage is a flexible PVC insulated, PVC jacketed harmonized cord recommended for use in electronic and electrical equipment such as office.
Cable Standard
Generally conforms to DIN VDE 0281-5&2,
BS:6500, EN-50525-2-11, IEC 60227-5
Cable Features
- Special heat resistant insulation
- High current carrying capacity
- Less heat energy radiation
- Longer life
- High compatibility of cores
- Excellent resistant to moisture, abrasion,
grace, oil - Excellent mechanical & electrical properties
- Insulation is highly thermal stable
- Harmonized acc. to European standards
Standard Packing
Coils 100, 200, 500 and 1000m

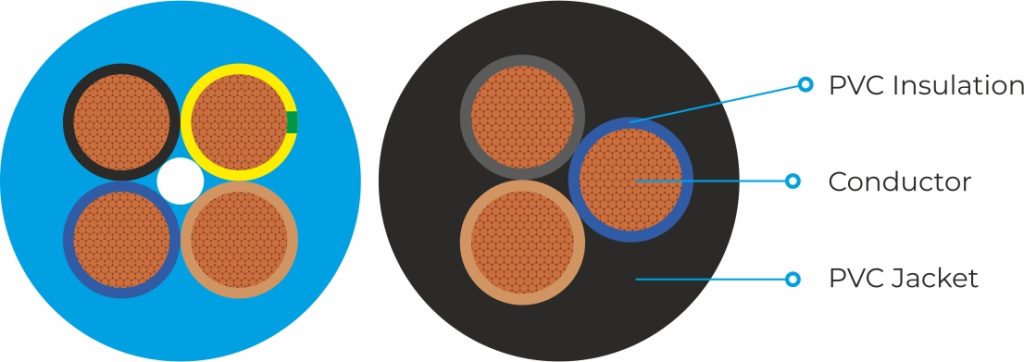

- Conductor : Annealed flexible bare Copper (Class 5 – Flexible Plain Copper) accordingto VDE 0295 IEC 60228.
- Insulation : PVC T12 to according to
EN 50363-3, BS 7655 - Sheath : PVC TM2.to according to
EN 50363-3, BS 7655 - Colour : White, Black, Blue or as per customer order
Technical Data
| Working Temp | -5°C to 70°C |
| Operating Temp | – 20°C to +80°C |
| Nominal Voltage | – 300/500 V |
| Test Voltage | – 2000 V |
| Min. Bending Radius | – 6x Cable Diameter |
Core Identification
2 Core – Blue & Brown
3 Core – Yellow/green, Blue, Brown
4 Core – Yellow/green, Blue, Brown, Black or Yellow/green, Brown, Black, Grey
5 Core – Yellow/green, Blue, Brown, Black and Grey
