INSTRUMENTATION CABLE
PVC/PE Insulated Overall Shielded 300V
Application
Instrumentation Cables, insulated with PVC/PE, Overall, al-mylar shielded, armoured / unarmoured and PVC / LSZH sheathed cable
confirming to BS EN 50288-7 are designed for transmission of analogue and digital signals in instrument and control systems.
Instrumentation Cables are used for diverse applications within industrial process for control, communication, data & voice
transmission in oil, gas & petrochemical industries, cement, steel, fertilizers etc.
Voltage Rating
300 V
Standard And References
EN 50288-7 | EN 50288-1 | 60228 | 50290-2-22/27
Operation Temperature
Max.:
PVC 70°C, HRPVC 85°C,
XLPE 90°C, LDPE 60°C
Compliance
Conductor resistance – IS 8130:2013
Insulation resistance – IS 7098-1:1988
Flammability test – IEC 60332-1-2:2015
Core Identification
White / Blue core with number printing
Bending Radius
Fixed installation >
12 x Overall Diameter
Bending Radius
| Conductor Resistance | – EN 60228 |
| Insulation Resistance | – EN 50288-7 |
| L/R Ratio | – EN 50288-7 |
| Mutual Capacitance | – EN 50288-7 |

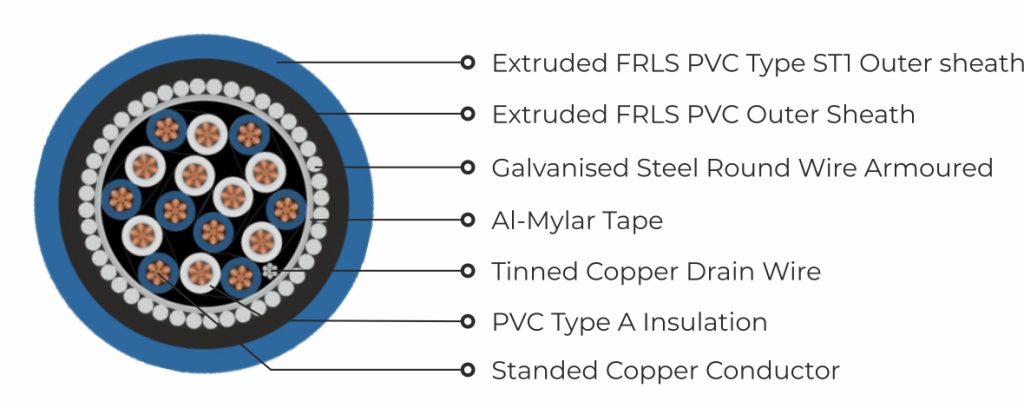

Construction
- – Stranded Copper conductor as per EN 60228
- – Insulated with PVC/PE as per EN 50288-7
- – Collective screen Al/PET (Aluminium /Polyester tape)
with drain wire of tinnedCu/Tinned copper braiding. - Extruded inner sheath with PVC/LSZH toEN 50290-2-22/27
- Armoured with Galvanised Steel Strip/Round as per EN 50288-7
- Sheathed with Extruded PVC/LSZH to EN 50290-2-22/27
Note A : Outer sheath also available with PE & FRLS on request
Note B : As per the application/identification requirement,
other colour also available on request.
