MC 1.5 SQMM COPPER CONDUCTOR XLPE INSULATED ARMOURED CONTROL CABLE (2XFY)
650/1100V AC – IS 7098-Part 1
Application
1.5 2XFY MC, Stranded/solid copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel strip armour and PVC sheathed
confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage up to and
including 1100 V.
This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.
Voltage Rating
650/1100 V
Standard And References
IS 8130:2013 | IS 5831:1984 | IS 3975:1979 | IS 7098-1:1988
Operation Temperature
Max.: 90˚C
Short circuit temperature 250˚C
Compliance
Conductor resistance – IS 8130:2013
Insulation resistance – IS 7098-1:1988
Flammability test – IEC 60332-1-2:2015
Core Identification
White with number printing
Bending Radius
Fixed installation | 12 x Overall diameter
Outer Sheath Colour
Black
*Other colour also available on request.

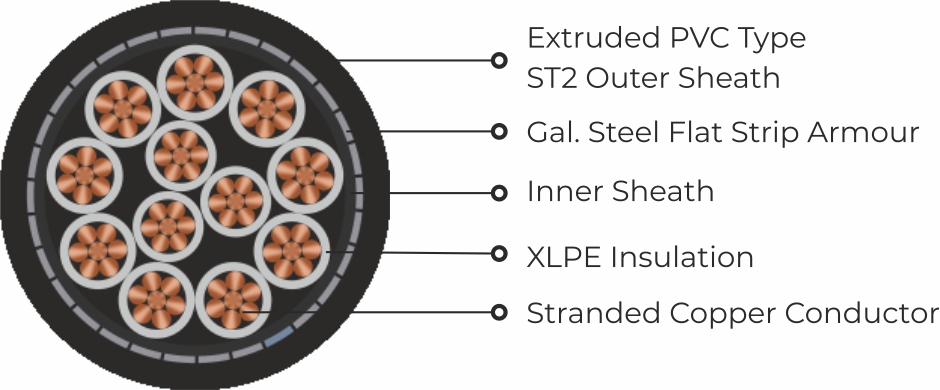

Construction
- Stranded Copper conductor as per IS 8130, class 1&2-
- Insulated with Cross Linked Polyethylene (XLPE) to IS 7098-1
- Armoured with Galvanised Steel strip to IS 3975
- Extruded inner sheath with PVC Type ST2/FRLS/FR/LSZH-
- Sheathed with Extruded PVC Type ST2/FRLS/FR/LSZH
