MC-3.5 COPPER CONDUCTOR XLPE INSULATED ARMOURED POWER CABLE
(2XFY) 650/1100V AC – IS 7098-PART 1
Application
2XFY MC-3.5, Stranded compacted copper conductor, XLPE insulated, PVC inner sheathed, Galvanised Steel Flat strip armour and
PVC sheathed confirming to IS 7098-1 is suitable for AC single phase or three phase (earthed or unearthed) systems with rated voltage
up to and including 1100 V.
This cable is also suitable for DC systems with rated voltage up to and including 1500 V to earth.
Voltage Rating
650/1100 V
Standard And References
IS 8130:2013 | IS 5831:1984 | IS 3975:1979 | IS 7098-1:1988
Operation Temperature
Max.: 90˚C
Short circuit temperature 250˚C
Compliance
Conductor resistance – IS 8130:2013
Insulation resistance – IS 7098-1:1988
Flammability test – IEC 60332-1-2:2015
Core Identification
Red / Black / Yellow / Blue / Natural
Bending Radius
Fixed installation | 12 x Overall diameter

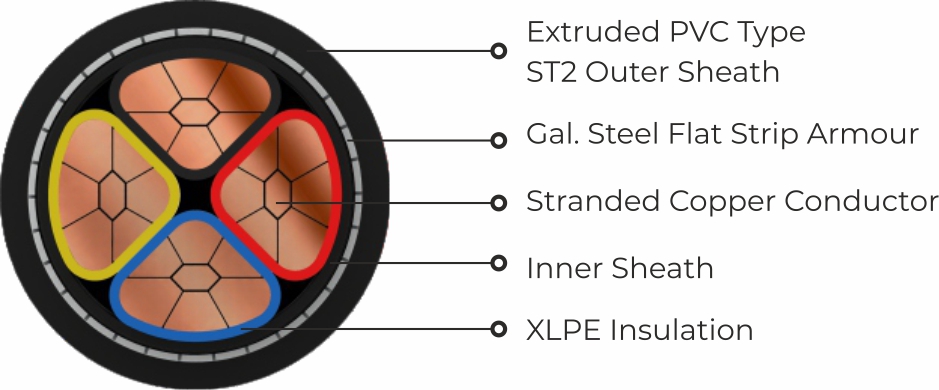

Construction
- Stranded plain compacted copper conductor as per IS 8130, class 2
- Insulated with Cross Linked Polyethylene (XLPE) to IS 7098-1
- Armoured with Aluminium Round wire/Flat strip armoured
- Sheathed with PVC Type ST2/FRLS/FR/LSZH
