PVC INSULATED & PVC SHEATHED
ROUND CABLE
Application
Ideal For industrial induction motor, power tools,
electrical machinery etc…
Cable Standard
IS 694:2010, BS 6500
Salient Features
- High Flexibility
- Excellent resistant to moisture, abrasion,
grace, oil - Long Life
- Excellent mechanical & electrical properties
Standard Packing
Coils 100, 200, 300 , 500, 1000m

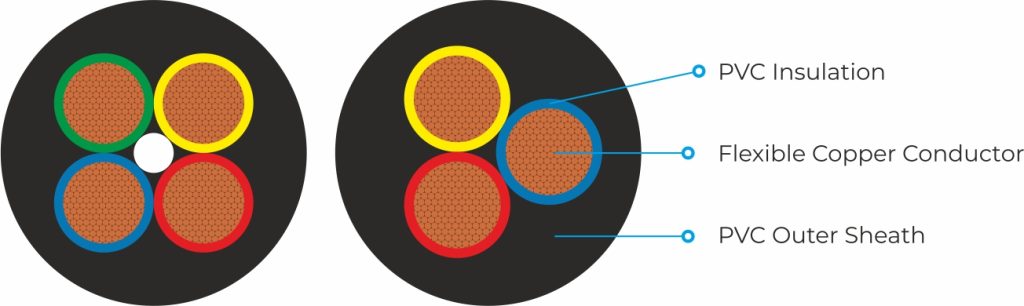

- Conductor : Flexible Bare or Tinned Bunch
Copper as per IS:8130-1984 - Insulation : PVC as per IS:5831-1984
- Sheath : PVC as per IS:5831-1984
Technical Data
| Working Temp | : Max.+70°C |
| Nominal Voltage | : 1.1 KV |
| Test Voltage | : 3.0 KV |
| Min. Bending Radius | : 6 x Cable Diameter |
Core Colour
As per IS 694 : 2010
2 Core – Red & Black
3 Core – Red, Black, Green or Red, Yellow and Blue
4 Core – Red, Yellow, Blue and Green or Black
