SINGLE CORE
PANEL WIRE H05V-K & H07V-K
Application
Fixed installation in conduits and under plaster,
for appliance wiring and distribution stations.
Cable Standard
IS : 694 : 2010 & BS 6004, BS EN 50525-2-31
Cable Features
- Special heat resistant insulation
- Higher current carrying capacity.
- Fine copper wires
- Highly thermal stable insulation
- Excellent resistant to moisture, abrasion,
grace, oil - Long Life
- Excellent mechanical & electrical properties
Standard Packing
Coils 90 and 180m

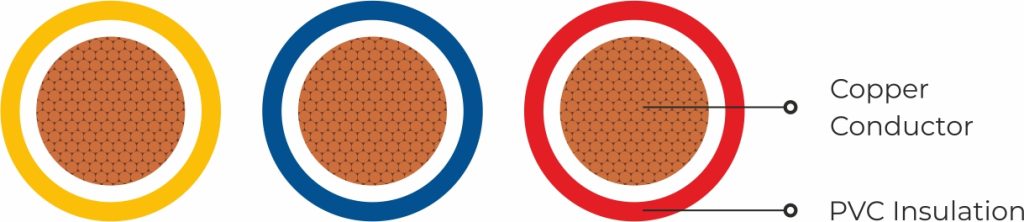

- Conductor : Flexible Bare Copper conductor class-2 and class-5 as per IS: 8130 EN 60228.
- Insulation : HR/FR/FRLS-H/ZHFR Insulation compound with a high insulation resistance value as per IS:5831.
- Colour : Red, Yellow/green, Blue, Black, Brown, Grey, Orange, White, Green, Yellow.
- Properties : PVC Self-extinguishing and flame retardant according to EN 60332-1-2.
