SOLAR
CABLE
Cable Standard
EN 50618
Electrical Characteristics
- Rated Voltage : 0.6/1 kV AC
- Rated DC Voltage : 1.5 kV
- Maximum Permitted DC Voltage : 1.8 kV (conductor/conductor,
non earthen system, circuit not under load) - Maximum Permitted AC Voltage : 1 KV
- Working Voltage : DC 1000 V
- Spark Test : 6000 V. ac (8400 Vdc)
- Voltage Withstand : 6500 V as per EN50395 for 5 min
- Ampacity : According to requirements for cables for PV systems
Standard Packing
Coils 100, 200,300, 500, 1000m

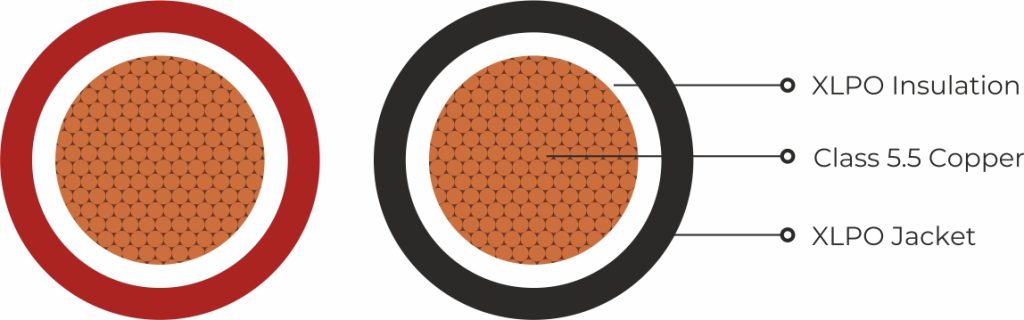

- Conductor : Flexible Electrolytic fine Tinned copper class-5 conductor according to IEC 60228
- Insulation : XLPO (Crosslinked Halogen Free & Flame Retardant)
- Sheath :XLPO (Crosslinked Halogen Free & Flame Retardant)
Technical Data
- Ambient Temperature : -40°C – +90°C
- Minimum Bending Radius : 5 x OD (fixed), 15 x OD
(occasional flexing) - Flame retardant : according to IEC 60332-1-2
- Low smoke emission < 20% as per ASTM D-2843
- Halogen free according to EN 50267-2-1/-2, IEC 60754-2
- Maximum Temperature at Conductor : 120°C (20000h)
- Short Circuit Temperature : 200°C (at conductor max. 5sec)
- Thermal Endurance Test : According to EN 60216-2
(temperature index +120°C) - High Temperature Pressure : Test according to EN 60811-3-1
- Excellent mechanical and electrical properties.
- UV resistance & OZONE resistance
- Flexibility & suitability for fast & easy installatio
Core Colour
Red, Black and also available black color with red lining.
