SUBMERSIBLE DOUBLE SHEATH CABLE
3 & 4 CORE
Application
Ideal For Irrigation Pumps, Drinking Water Supply
Pumps, Submersible Pump Motor Power Supply.
Cable Standard
BS 6500 & IS 694:2010, IEC 60227
Salient Features
- High Flexibility
- Excellent resistant to moisture, abrasion,
grace, oil - Long Life
- Excellent mechanical & electrical properties
Standard Packing
Coils 100, 200, 300 , 500, 1000m

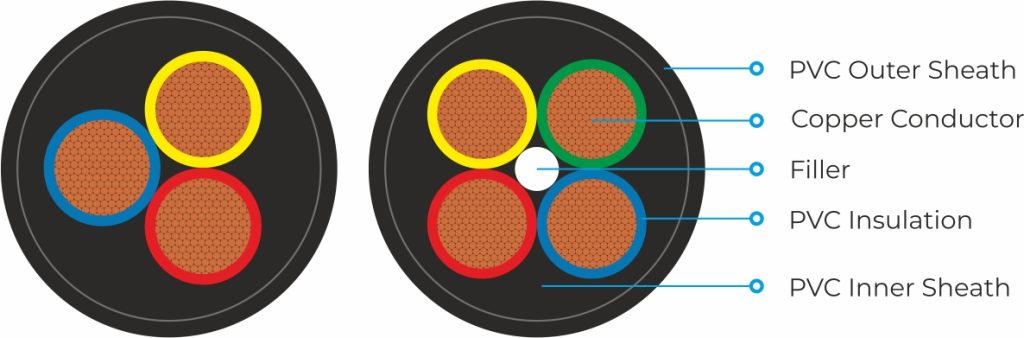

- Conductor : Flexible Bare Bunch Copper as per IS:8130
- Insulation : PVC / EPR RUBBER
- Inner Sheath : PVC / NBR / TPR RUBBER
- Outer Sheath : PVC / NBR / TPR RUBBER
Technical Data
| Working Temp | : Max.+70°C |
| Nominal Voltage | : 1.1 KV |
| Test Voltage | : 3.0 KV |
| Min. Bending Radius | : 6 x Cable Diameter |
Core Colour
- As per IEC 60227 – 3C -Blue, Brown, Black or Yellow/
Green, 4C -Blue, Brown, Black, Grey or Yellow/Green - As per IS 694 : 2010 – 3C – Red, Yellow and Blue
4C – Red, Yellow, Blue and Green
