SUBMERSIBLE FLAT CABLE
3 & 4 CORE
Application
Ideal For Irrigation Pumps, Drinking Water Supply
Pumps, Submersible Pump Motor Power Supply.
Cable Standard
IS 694:2010, BS 6500, IEC 60227
Salient Features
- Excellent flexibility
- Excellent resistant to moisture, abrasion,
grease, oil - Long Life
- Excellent mechanical & electrical properties
Standard Packing
Coils 100, 200,300, 500, 1000m

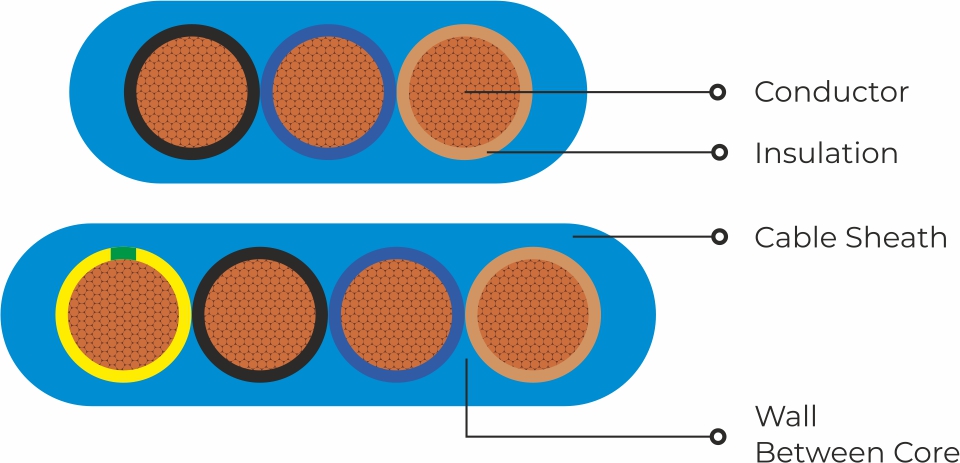

- Conductor : Flexible Bare Bunch Copper as per IS:8130
- Insulation : PVC / XLPE / EPR RUBBER
- Outer Sheath : PVC / EPR RUBBER
Technical Data
| Working Temp | : Max.+70°C |
| Nominal Voltage | : 1.1 KV |
| Test Voltage | : 3.0 KV |
| Min. Bending Radius | : 6 x Cable Diameter |
Core Colour
As per IS: 694:2010 – 3C – Red, Yellow, Blue, 4C Red, Yellow, Blue, Black
As per IEC:60227 – 3C – Black, Blue, Brown.
4C – Black, Blue, Brown, Green or Yellow/Green
