WELDING
CABLE
Application
Designed for the secondary (high current) connection to automatic or hand – held metal arc welding electrodes. It is suitable for flexible use
under rugged conditions, on assembly lines & conveyor systems, in machine tool and automatically operated line & spot welding machines.
Cable Standard
Generally conforms to, Based on IS:9857-1990 VDE 0282,
IEC 245-6, BS 6899
Salient Features
- Ultra high performance flexible welding lead, double insulated for longer life and added safety
- Better flame retardant properties
- Outstanding toughness & durability
- High resistance to cuts, tears & abrasion
- Resistance to oil, solvents and chemicals
- Excellent ozone and weather resistant
Standard Packing
Coils 100, 200, 300 and 500m

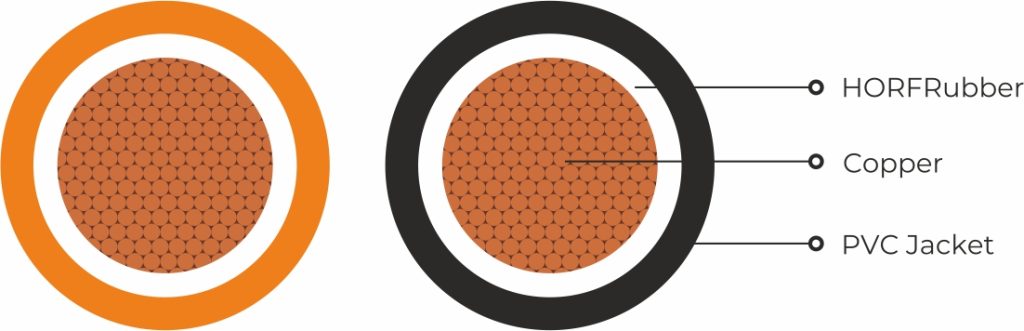

- Conductor : High conductivity, bare annealed copper flexible conductor, EC copper class 5 & class 6 generally conforms to IS:8130-1984, IEC 60228
- Separation : Polyester tape
- Insulation :Double Insulated/single insulated flexible Nitrile rubber HOFR insulated as per IS:6380-1984
- Colour : Orange / Black Jacket
Technical Data
| Fixed Installation | : -20°C to max.+90°C |
| Nominal Voltage | : 600 V |
| Spark Test | : 3.5 KV(ac) |
| Min. Bending Radius | : 6 x Cable Diameter |
Current Rating
The maximum current ratings of flexible welding cables for different
duly cycles are based on an ambient air temperature of 25 C and a
maximum conductor temperature of 90 C. The percentage duly cycles
for various processes and applications are as follows:
- Automobile Welding : up to 100%
- Semi Automatic Welding : 30% to 85%
- Manual Welding : 0% to 60%
- Very intermittent or Occasional Welding : up to 20%
Voltage Drop
When total cable lengths in excess of 15mtr., are involved, it may be necessary to use cables of larger cross section to ensure that the voltage drop is not excessive & welding currents are maintained at adequate levels.
